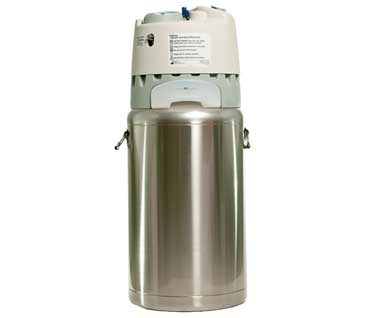

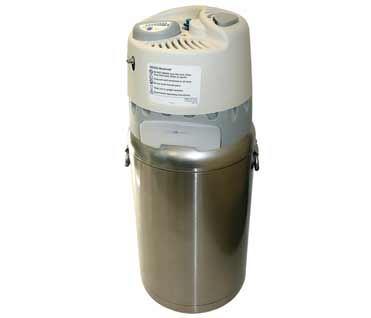

CAIRE® HELiOS™ Reservoirs
These versatile liquid oxygen reservoirs work with all CAIRE top-fill portable units. Available in two sizes, the CAIRE HELiOS Universal Reservoir can help you make optimal use of inventory to reduce your operating costs. Via an optional external flow control valve, it can also provide oxygen directly to patients.
CAIRE HELiOS Reservoirs features and benefits include:
- Electronic contents indicator eliminates guesswork.
- Integrated condensation collection system.
- Built-in pressure gauge for a simpler filling process.
These versatile liquid oxygen reservoirs work with all CAIRE top-fill portable units. Available in two sizes, the CAIRE HELiOS Universal Reservoir can help you make optimal use of inventory to reduce your operating costs. Via an optional external flow control valve, it can also provide oxygen directly to patients.
CAIRE HELiOS Reservoirs features and benefits include:
Electronic contents indicator eliminates guesswork.
Integrated condensation collection system.
Built-in pressure gauge for a simpler filling process.
Specifications Include:
| CAIRE HELiOS U36 | CAIRE HELiOS U46 | |
| LOX capacity | 37.3 L | 47.1 L |
| Gaseous equivalent capacity | 32,078 L | 40,506 L |
| Weight, Empty | 53.0 lb (24.04 kg) | 60.0 lb (27.22 kg) |
| Weight, Full | 142.70 lb (64.73 kg) | 173.28 lb (78.60 kg) |
| Height | 33.5 in. (851 mm) | 37.5 in. (952 mm) |
| Diameter | 15.4 in. (391 mm) | 15.4 in. (391 mm) |
| Typical use time at 2 LPM demand mode |
10.9 days | 13.9 days |
| Normal evaporation rate | 1.2 - 0.5 lb/day (0.54 - 0.68 kg/day) |
1.2 - 0.5 lb/day (0.54 - 0.68 kg/day) |
| Standard flow control range | Off, .5, .75, 1, 1.5, 2, 3, 4, 5, 6, 8, 10 LPM | Off, .5, .75, 1, 1.5, 2, 3, 4, 5, 6, 8, 10 LPM |
Related products
- Business Sales & Support:
- CALL +1-800-482-2473
- Request a Call
- email: caire.request@caireinc.com
Specifications
| HELiOS U36 | HELiOS U46 | |
| LOX capacity | 85 lb (38,6 kg) | 110 lb (49,9 kg) |
| Gaseous equivalent capacity | 29,069 L | 37,619 L |
| Weight, Empty | 53.0 lb (24 kg) | 60.0 lb (27,2 kg) |
| Weight, Filled | 138 lb (62,6 kg) | 170 lb (77,1 kg) |
| Height | 33.5 in. (851 mm) | 37.5 in. (952 mm) |
| Diameter | 15.4 in. (391 mm) | 15.4 in. (391 mm) |
| Typical use time at 2 LPM demand mode |
10 days 21 hrs | 13 days 21 hrs |
| Operating Pressure | 22 psi (152 kPa) | 22 psi (152 kPa) |
| Normal evaporation rate | 1.2 – 0.5 lb/day (0.54 – 0.68 kg/day) |
1.2 – 0.5 lb/day (0.54 – 0.68 kg/day) |
| Standard flow control range | Off, .5, .75, 1, 1.5, 2, 3, 4, 5, 6, 8, 10 LPM | Off, .5, .75, 1, 1.5, 2, 3, 4, 5, 6, 8, 10 LPM |
Literature
HELiOS Reservoir Cutsheet (ML-LOX0006) ENG
FRE (ML-LOX0006-1) | GER (ML-LOX0006-2) | ITL (ML-LOX0006-5) | SPA (ML-LOX0006-3)
LOX Time Use Duration Chart (ML-LOX0007) ENG
FRE (ML-LOX0007-1) | GER (ML-LOX0007-2) | SPA (ML-LOX0007-3) | ITL (ML-LOX0007-5)
HELiOS Reservoirs User Manual (21157307)
ENG, FRE, GER, SPA, ITL, POR, DUT, DAN, NOR, SWE, FIN, GRE, TUR, CZE, POL, HUN (21157307-C4)
